TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(70)

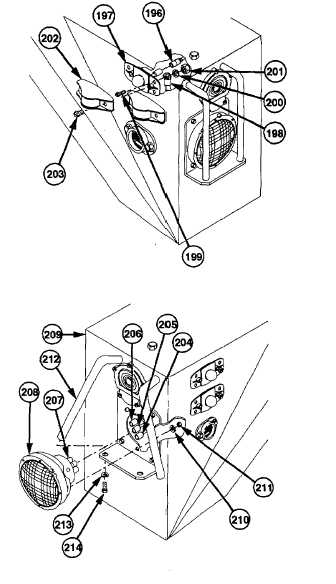

Install wire no. 1012 (196) on right marker
light base (197).
(71)
Install ground wire no. 1435 (198) on
mounting screw (199) with washer (200)
and new locknut (201).
(72)
Install marker light cover (202) on right
marker light base (197) with two screws
(203).
(73)
Install ground wire no. 1435 (204), wire
no. 1007 (205), and wire no. 1006 (206)
on three connectors (207) in left headlight
assembly (208).
(74)
Install left headlight assembly (208) on
fender (209) with three new lockwashers
(210) and nuts (211).
(75)
Install two headlight guards (212) with two
new lockwashers (213) and screws (214).
6-112
|
