TM 9-2320-360-34-1
(60)

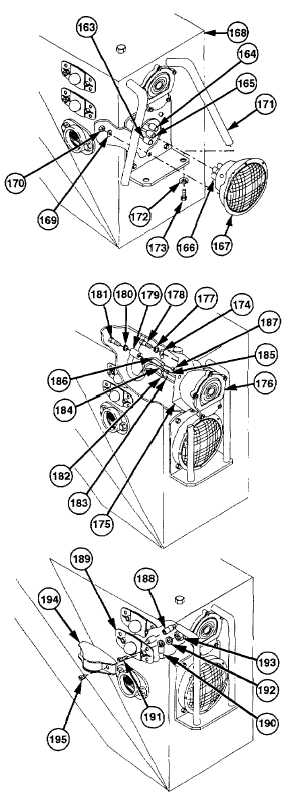

Install ground wire no. 1435 (163), wire
no. 1007 (164), and wire no. 1006 (165)
on
three
connectors
(166)
in
right
headlight assembly (167).
(61)
Install right headlight assembly (167) on
fender (168) with three new lockwashers
(169) and nuts (170).
(62)
Install two headlight guards (171) with two
new lockwashers (172) and screws (173).
(63)
Install ground wire no. 1435 (174) on
mounting bracket (175) and right front
composite light (176) with new lockwasher
(177) and screw (178).
(64)
Install cushion clip (179) on harness (1).
(65)
Install cushion clip (179) on mounting
bracket (175) and right front composite
light (176) with new lockwasher (180) and
screw (181).
(66)
Install wire no. 1680 (182) on connector
no. 20 (183), wire no. 1001 (184) on
connector no. 460 (185), and wire no.
1012 (186) on connector no. 491 (187) of
right front composite light (176).
(67)
Install wire no. 1001 (188) on right marker
light base (189).
(68)
Install ground wire no. 1435 (190) on
mounting screw (191) with washer (192)
and new locknut (193).
(69)
Install marker light cover (194) on right
marker light base (189) with two screws
(195).
6-111
|
