TM 9-2320-360-34-1
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(48.1)

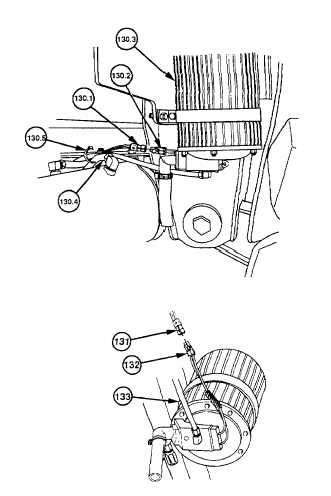

Install electrical connector (130.1) on
electrical connector (130.2) on aftercooler
(130.3).
(48.2)
Secure electrical connector (130.1) to
hose no. 2081 (130.4) with plastic cable
ties (130.5).
(49)
Install
electrical
connector
(131)
on
electrical connector (132) on left air dryer
(133).
6-108.1 (6-108.2 blank)
|
