TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(44)

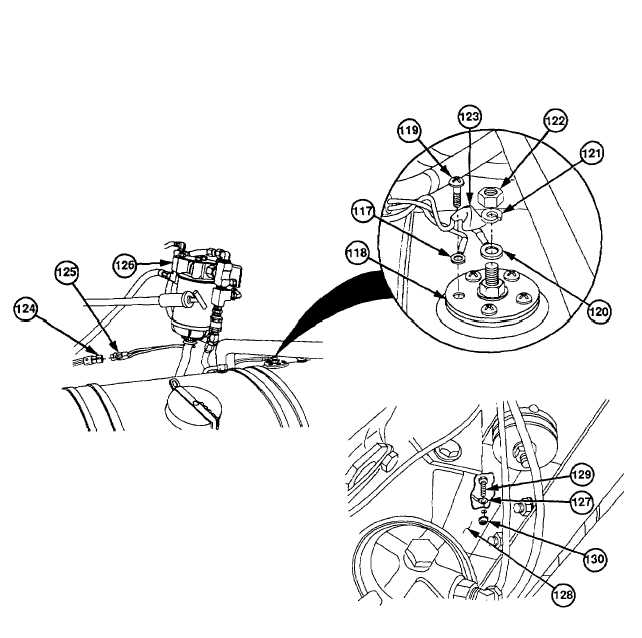

Install ground wire no. 1435 (117) on fuel
level sensor (118) with screw (119).
(45)
Install wire no. 1318 (120) on fuel level
sensor (118) with new lockwasher (121)
and nut (122).
(46)
Slide boot (123) on fuel level sensor (118).
(47)
Install
electrical
connector
(124)
on
electrical connector (125) on fuel/water
separator heater (126).
(48)
Install ground wire no. 1435 (127) on left
front transfer case mounting bracket (128)
with screw (129) and new locknut (130).
6-108
|
