TM 9-2320-360-34-1
(50)

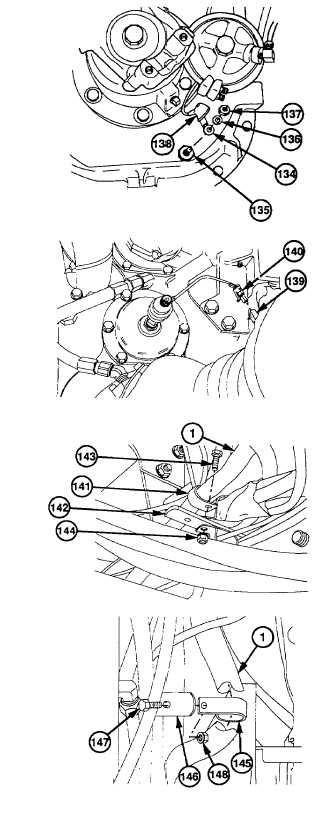

Install wire no. 1063 (134) on transfer
case oil temperature sending unit (135)
with new lockwasher (136) and nut (137).
(50.1)
Apply anticorrosion grease to terminal on
sending unit (135).
(51)
Slide boot (138) on sending unit (135).
(52)
Install wire no. 1519 (139) on CTI signal
generator (140).
(53)
Install cushion clip (141) on standoff
bracket (142) and harness (1) with screw
(143) and new locknut (144).
(54)
Install cushion clip (145) on standoff
bracket (146) and harness (1) with screw
(147) and new locknut (148).
6-109
|
