TM 9-2320-360-34-1
(38)

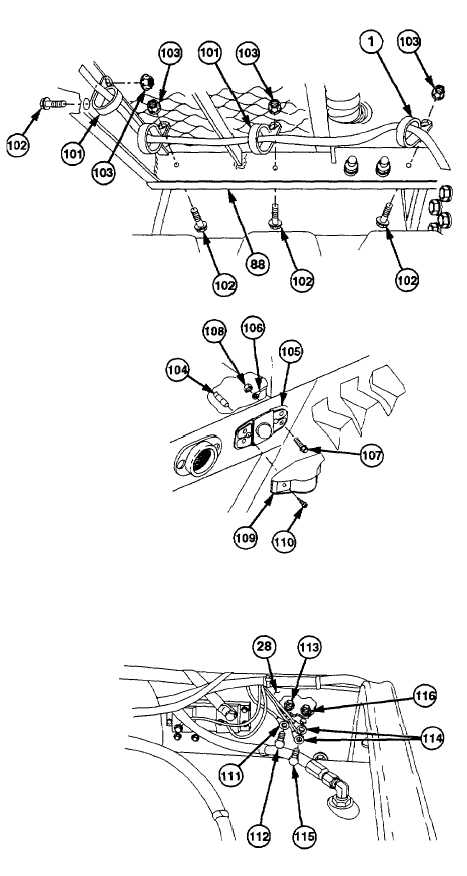

Install four cushion clips (101) on winch
platform (88) and harness (1) with four
screws (102) and new locknuts (103).
(39)
Install wire no. 1012 (104) on left marker
light base (105).
(40)
Install ground wire no. 1435 (106) on
mounting screw (107) with new locknut
(108).
(41)
Install marker light cover (109) on left
marker light base (105) with two screws
(110).
(42)
Install 24-volt ground wire no. 1435C
(111) on left frame (28) with screw (112)
and new locknut (113).
(43)
Install two 12-volt ground wires no. 1435
(114) on left frame (28) with screw (115),
and new locknut (116).
6-107
|
