TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(29)

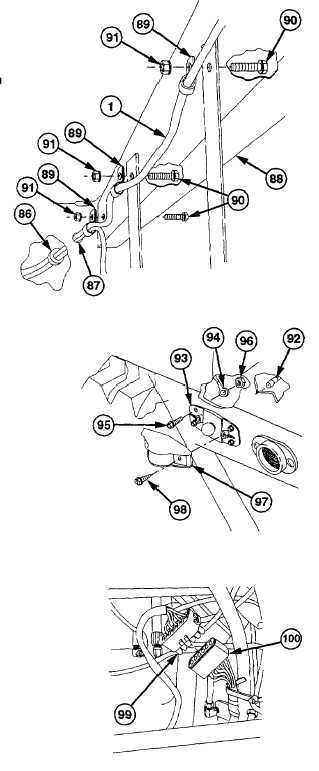

Pull grommet (86) through hole (87) to
outside of winch platform (88).
(30)
Route harness (1) through hole (87) in
winch platform (88).
(31)
Route harness (1) through grommet (86).
(32)
Install grommet (86) in hole (87).
(33)
Install three cushion clips (89) on winch
platform (88) and harness (1) with three
screws (90) and new locknuts (91).
(34)
Install wire no. 1012 (92) on right marker
light base (93).
(35)
Install ground wire no. 1435 (94) on
mounting screw (95) with new locknut
(96).
(36)
Install marker light cover (97) on right
marker light base (93) with two screws
(98).
(37)
Install electrical connector (99) on winch
system electrical connector (100).
6-106
|
