6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(78)

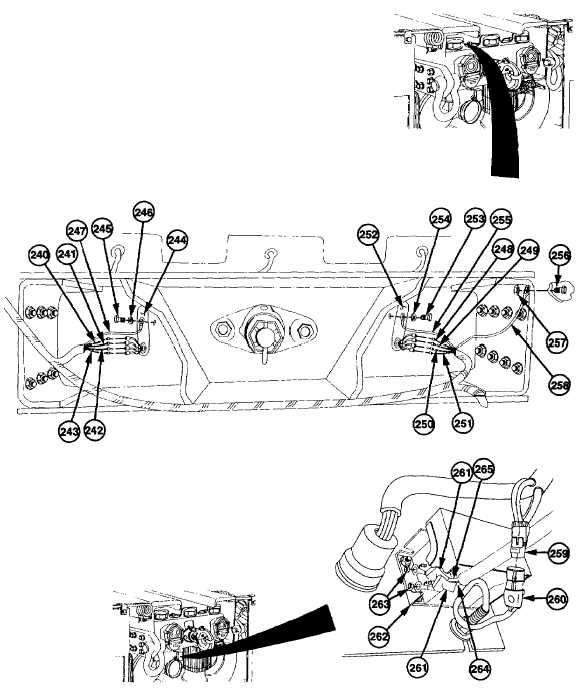

Remove wire no. 1004A (240), wire no.
1012 (241), wire no. 1680 (242), and wire
no. 1678 (243) from right rear composite
light (244).
(79)
Remove screw (245), lockwasher (246),
and ground wire no. 1435 (247) from right
rear composite light (244). Discard
lockwasher.
(80)
Remove wire no. 1003A (248), wire no.
1012 (249), wire no. 1680 (250), and wire
no. 1678 (251) from left rear composite
light (252).
(81)
Remove screw (253), lockwasher (254),
and ground wire no. 1435 (255) from left
rear composite light (252). Discard
lockwasher.
(82)
Remove screw (256), locknut (257), and
ground wire no. 1435 (258) from left frame
(27). Discard locknut.
(83)
Remove electrical connector (259) from
backup light electrical connector (260).
(84)
Lift and slide two boots (261) from backup
alarm (262).
(85)
Remove two nuts (263), wire no. 1149
(264), and ground wire no. 1435 (265)
from backup alarm (262).
