TM 9-2320-360-34-1
(73)

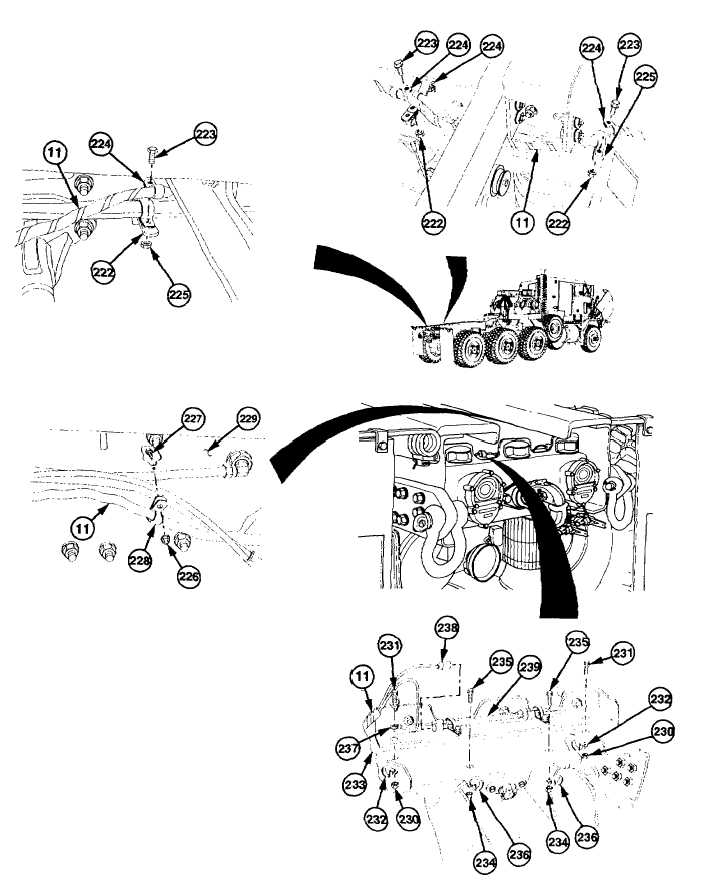

Remove three locknuts (222), screws
(223), and cushion clips (224) from
standoff brackets (225) and harness (11).
Discard locknuts.
(74)
Remove locknut (226), screw (227), and
cushion clip (228) from right frame (229)
and harness (11). Discard locknut.
(75)
Remove two locknuts (230), screws (231),
cushion clips (232), and ground wire no.
1435 (237) from rear crossmember (233)
and harness (11). Discard locknuts.
(76)
Remove two locknuts (234), screws (235),
and
cushion
clips
(236)
from
rear
crossmember (233) and harness (11).
Discard locknuts.
(77)
Disconnect wire no. 1012 (238) of harness
(11) from rear marker light wire harness
(239).
Change 2 6-99
|
