TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(67)

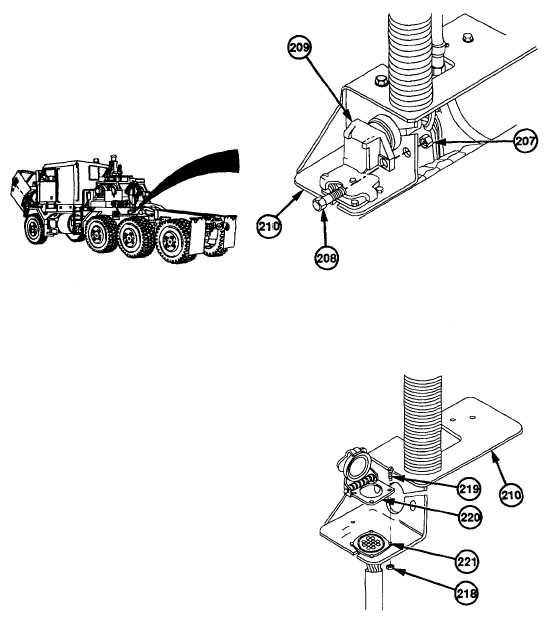

Remove two locknuts (207), screws (208),
and 7-pin electrical connector (209) from
mounting bracket (210). Discard locknuts.
(68)
Deleted.
(69)
Deleted.
(70)
Deleted.
(71)
Remove four locknuts (218), screws (219),
and 12-pin trailer electrical connector
cover (220) from mounting bracket (210).
Discard locknuts.
(72)
Remove 12-pin trailer electrical connector
(221) from mounting bracket (210).
6-98
|
