TM 9-2320-36034-1
(63)

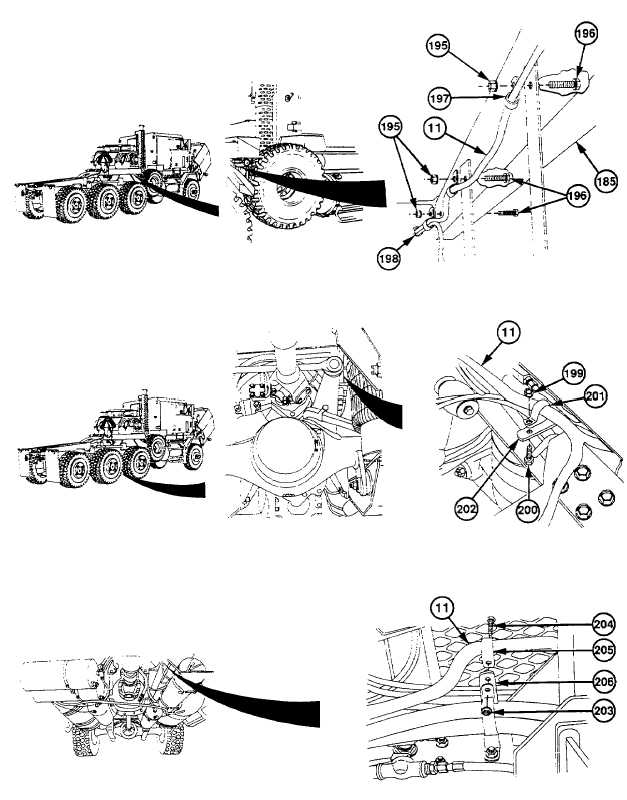

Remove three locknuts (195), screws
(196), and cushion clips (197) from winch
platform (185) and harness (11). Discard
locknuts.
(64)
Pull harness (11) through grommet (198)
in winch platform (185).
(65)
Remove locknut (199), screw (200), and
cushion clip (201) from standoff bracket
(202) and harness (11). Discard locknut.
(66)
Remove locknut (203), screw (204), and
cushion clip (205) from standoff bracket
(206) and harness (11). Discard locknut.
6-97
|
