TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(58)

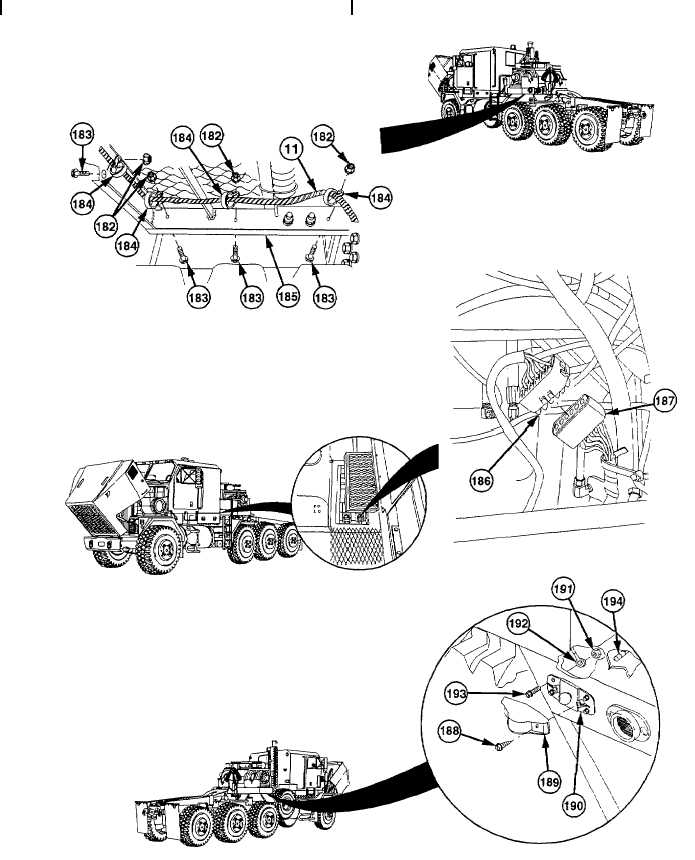

Remove four locknuts (182), screws (183),
and cushion clips (184) from winch
platform (185) and harness (11). Discard
locknuts.
(59)
Remove electrical connector (186) from
winch electrical system connector (187).
(60)
Remove two screws (188) and marker
light cover (189) from right marker light
base (190).
(61)
Remove locknut (191) and ground wire
no. 1435 (192) from mounting screw
(193). Discard locknut.
(62)
Remove wire no. 1012 (194) from right
marker light base (190).
6-96
|
