TM 9-2320-360-34-1
(49)

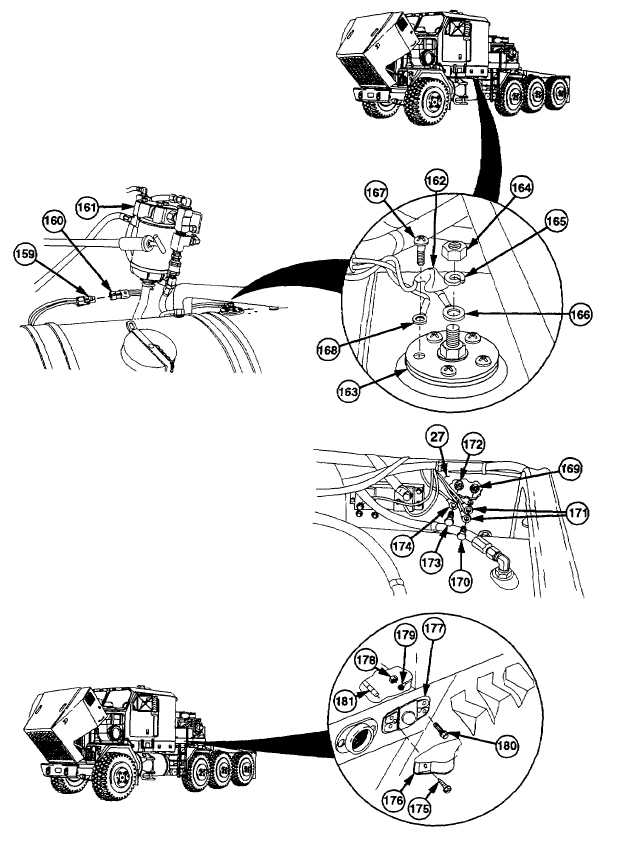

Remove electrical connector (159) from
electrical connector (160) on fuel/water
separator heater (161).
(50)
Lift and slide boot (162) from fuel level
sensor (163).
(51)
Remove nut (164), lockwasher (165), and
wire no. 1318 (166) from fuel level sensor
(163). Discard lockwasher.
(52)
Remove screw (167) and ground wire no.
1435 (168) from fuel level sensor (163).
Discard lockwasher.
(53)
Remove locknut (169), screw (170), and
two 12-volt ground wires no. 1435 (171)
from left frame (27). Discard locknut.
(54)
Remove locknut (172), screw (173), and
24-volt ground wire no. 1435C (174) from
left frame (27). Discard locknut.
(55)
Remove two screws (175) and marker
light cover (176) from left marker light
base (177).
(56)
Remove locknut (178) and ground wire
no. 1435 (179) from mounting screw
(180). Discard locknut.
(57)
Remove wire no. 1012 (181) from left
marker light base (177).
6-95
|
