TM 9-2320-360-34-1
NOTE
Location of plastic cable ties should
be marked before removal.
(47.1)
Cut
and
remove
cable
ties

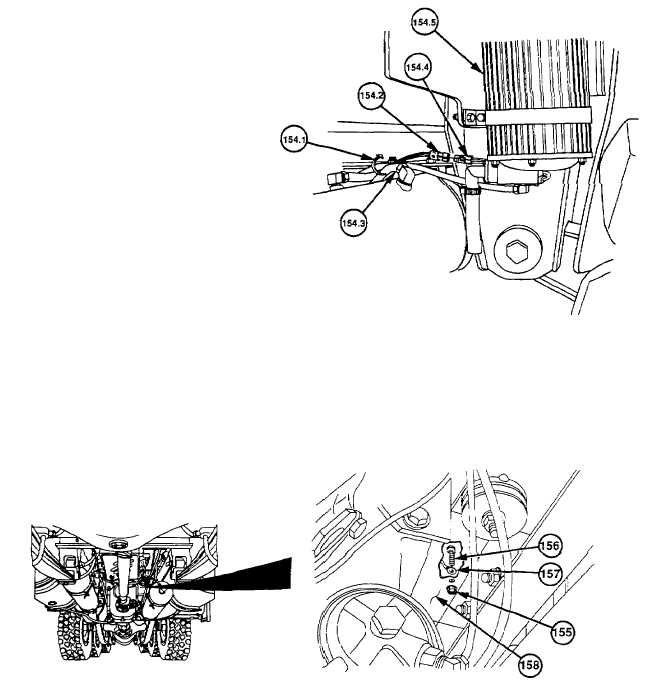

(154.1)
securing electrical connector (154.2) to
hose no. 2081 (154.3).
(47.2)
Remove electrical connector (154.2) from
electrical connector (154.4) on aftercooler
(154.5).
(48)
Remove locknut (155), screw (156), and
ground wire no. 1435 (157) from left front
transfer case mounting bracket (158).
Discard locknut.
6-94.1 (6-94.2 blank)
|
