TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)

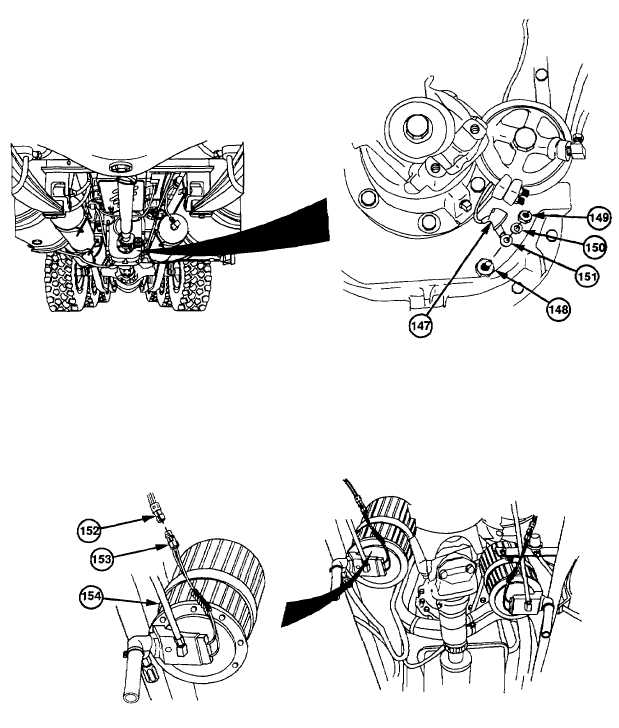

(45) Lift and slide boot (147) from transfer case
oil temperature sensor sending unit (148).
(46) Remove nut (149), lockwasher (150), and
wire no. 1063 (151) from transfer case oil
temperature sending unit (148). Discard
lockwasher.
(47) Remove electrical connector (152) from
electrical connector (153) on left air dryer
(154).
6-94
|
