TM 9-2320-360-34-1
(31)

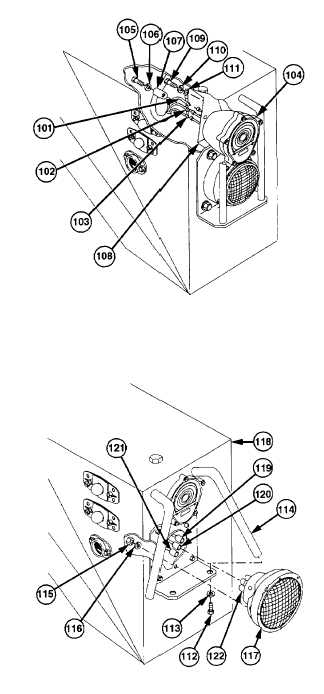

Remove wire no. 1012 (101), wire no.
1001 (102), and wire no. 1680 (103) from
right front composite light (104).
(32)
Remove screw (105), lockwasher (106),
and cushion clip (107) from right front
composite
light
(104)
and
mounting
bracket (108). Discard lockwasher.
CAUTION
Composite light must be supported
to
prevent
from
falling
when
mounting screw is removed. Failure
to comply may result in damage to
composite light.
(33)
Remove screw (109), lockwasher (110),
and ground wire no. 1435 (111) from right
front composite light (104) and mounting
bracket (108). Discard lockwasher.
(34)
Remove
two
screws
(112)
and
lockwashers (113) from two headlight
guards (114). Discard lockwashers.
NOTE
Swing headlight guards out away
from headlight assembly.
(35)
Remove three nuts (115), lockwashers
(116), and right headlight assembly (117)
from fender (118). Discard lockwashers.
NOTE
Tag and mark connectors before
removing wires. Each harness wire
has a numbered metal tag attached.
(36)
Remove wire no. 1006 (119), wire no.
1007 (120), and ground wire no. 1435
(121) from three connectors (122) on right
headlight assembly (117).
