TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(37)

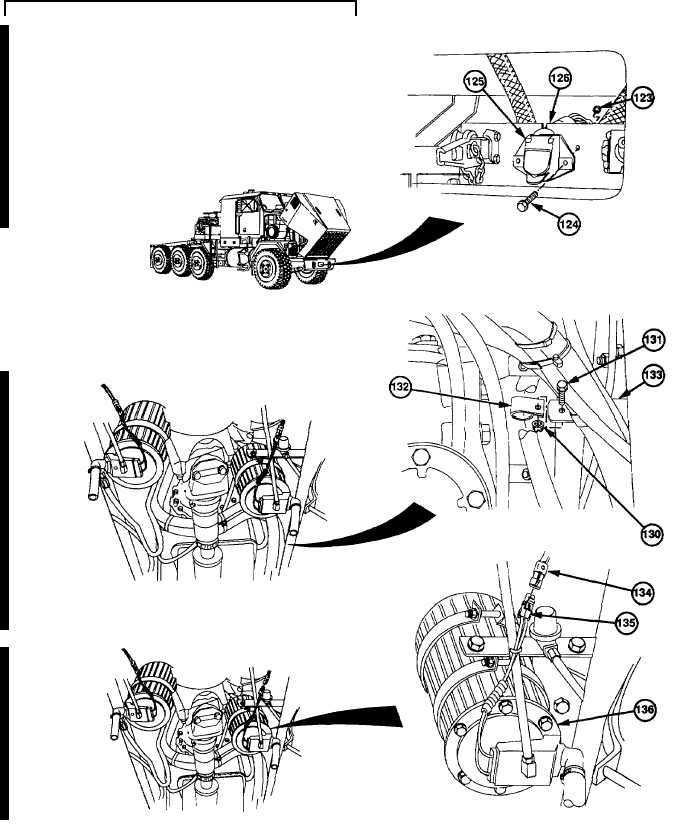

Remove two locknuts (123), screws (124),
and 7-pin electrical connector (125) from
bracket (126). Discard locknuts.
(38)
Delet ed.
(39)
Deleted.
(40)
Remove locknut (130), screw (131), and
cushion clip (132) from standoff bracket
(133) and harness (11). Discard locknut.
(41)
Remove electrical connector (134) from
electrical connector (135) on right air dryer
(136).
6-92
|
