TM 9-2320-360-34-1
6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)
(22)

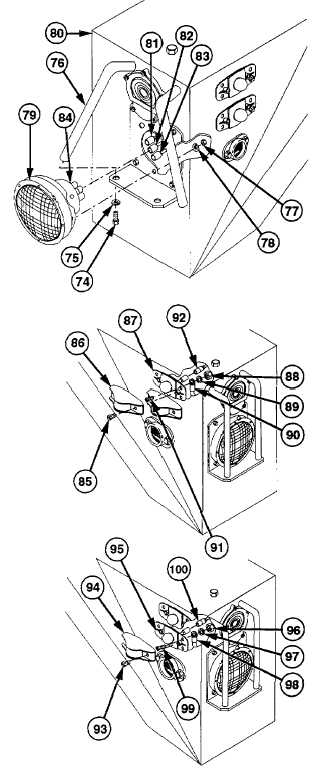

Remove two screws (74) and lockwashers
(75) from two headlight guards (76).
Discard lockwashers.
NOTE
Swing headlight guards away from
headlight assembly.
(23)
Remove three nuts (77), lockwashers
(78), and left headlight assembly (79) from
fender (80). Discard lockwashers.
NOTE
Tag and mark connectors before
removing wires. Each harness wire
has a numbered metal tag attached.
(24)
Remove wire no. 1006 (81), wire no. 1007
(82), and ground wire no. 1435 (83) from
three connectors (84) on left headlight
assembly (79).
(25)
Remove two screws (85) and marker light
cover (86) from right marker light base
(87).
(26)
Remove locknut (88), washer (89), and
ground wire no. 1435 (90) from mounting
screw (91). Discard locknut.
(27)
Remove wire no. 1012 (92) from right
marker light base (87).
(28)
Remove two screws (93) and marker light
cover (94) from right marker light base
(95).
(29)
Remove locknut (96), washer (97), and
ground wire no. 1435 (98) from mounting
screw (99). Discard locknut.
(30)
Remove wire no. 1001 (100) from right
marker light base (95).
6-90
|
