TM 9-2320-360-34-1
(16)

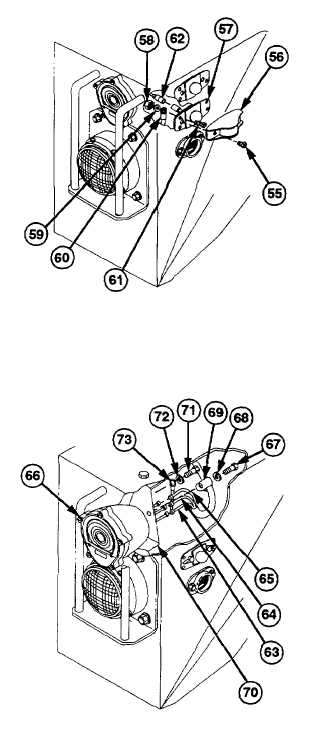

Remove two screws (55) and marker light
cover (56) from left marker light base (57).
(17)
Remove locknut (58), washer (59), and
ground wire no. 1435 (60) from mounting
screw (61). Discard locknut.
(18)
Remove wire no. 1002 (62) from left
marker light base (57).
(19)
Remove wire no. 1012 (63), wire no. 1002
(64), and wire no. 1680 (65) from left front
composite light (66).
(20)
Remove screw (67), lockwasher (68), and
cushion clip (69) from left front composite
light (66) and mounting bracket (70).
Discard lockwasher.
CAUTION
Composite light must be supported
to
prevent
from
falling
when
mounting screw is removed. Failure
to comply may result in damage to
composite light.
(21)
Remove screw (71), lockwasher (72), and
ground wire no. 1435 (73) from left front
composite light (66) and mounting bracket
(70). Discard lockwasher.
6-89
|
