6-8. CHASSIS WIRE HARNESS REPLACEMENT (CONT)

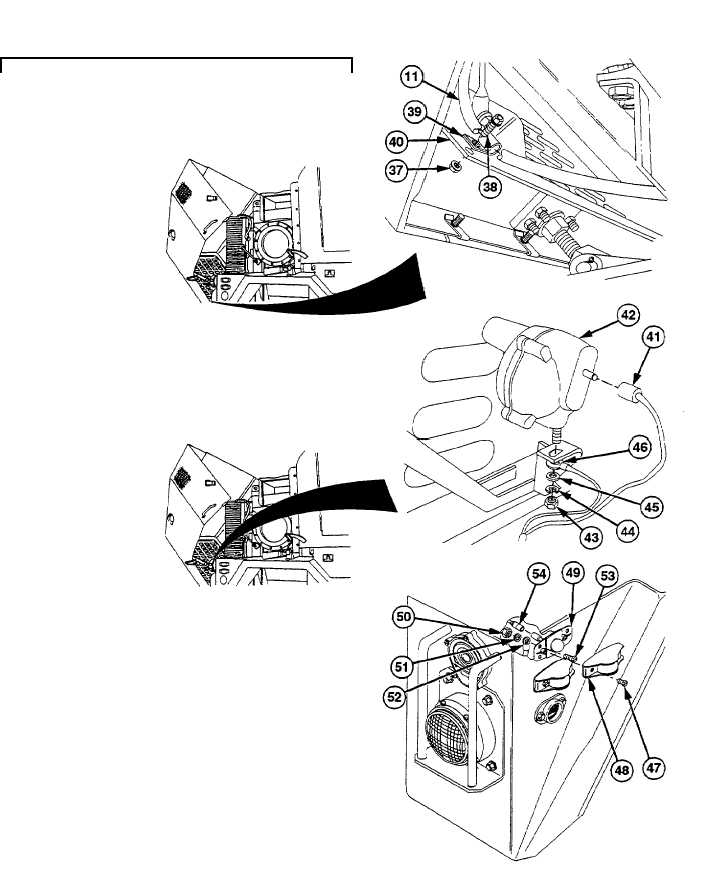

(10)
Remove locknut (37), screw (38), and
cushion clip (39) from hood (40) and
harness (11). Discard locknut.
(11)
Remove wire no. 1679 (41) from blackout
drive light (42).
(12)
Remove nut (43), lockwasher (44), washer
(45), and ground wire no. 1435 (46) from
blackout
drive
light
(42).
Discard
lockwasher.
NOTE
Marker light cover must be removed
to hold mounting screw while locknut
and ground wire are removed. Do
not replace marker light covers until
new wire harness is installed.
(13)
Remove two screws (47) and marker light
cover (48) from left marker light base (49).
(14)
Remove locknut (50), washer (51), and
ground wire no. 1435 (52) from mounting
screw (53). Discard locknut.
(15)
Remove wire no. 1012 (54) from left
marker light base (49).
