6-7. REAR CAB WIRE HARNESS REPLACEMENT (CONT)
(7)

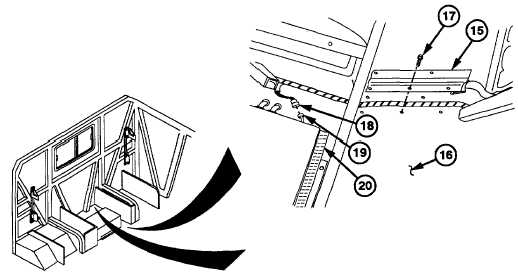

Install cover plate (15) on cab floor (16)
with five screws (17).
(8)
Install
electrical
connector
(18)
to
electrical connector (19) on rear heater
(20).
(9)

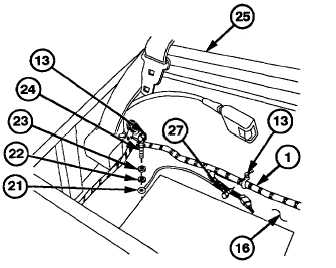

Install wire no. 1435 (21) on cab floor (16)
with new lockwasher (22), washer (23),
and screw (24).
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(10)
Install cab wire harness (1) on rear seat
bracket (25) and cab floor (16) with five
plastic cable ties (13) and screws (27).
(11)
Deleted.
(12)
Deleted.
NOTE
· Snap clips are installed with lock
button pulled out.
· To lock snap clips push in lock
button after snap clip is seated.
(13)
Pull insulation (34) back 3 in. (76.2 mm)
from cab rear wall (31) and install cab wire
harness (1) to cab rear wall (31) with eight
new snap clips (35).
