TM 9-2320-360-34-1
(14)

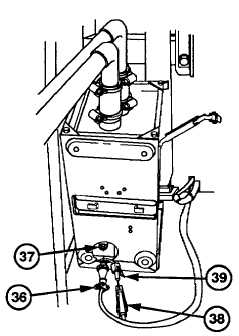

Install electrical connector (36) to GPFU
precleaner electrical connector (37).
(15)
Install electrical connector (38) to GPFU
precleaner electrical connector (39).
NOTE
When
receptacle
is
properly
positioned, alignment tang will face
up.
(16)
Position five new gaskets (40) and
receptacles (41 thru 45) on cab rear wall
(31).
(17)

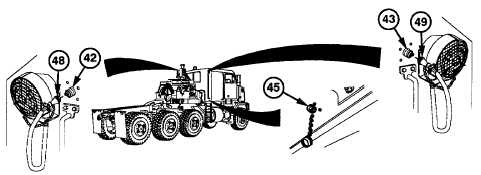

Install 5 receptacles (41 thru 45) on cab
wall (31) with 20 screws (46).
(18)
Install beacon light connector (47) to
center receptacle (41).
(19)
Install two work light connectors (48 and
49) to top right and left receptacles (42
and 43).
Change 1 6-79
|
