Install trailer brake dash plate (5) on dash
(2) with four screws (6).
(3)
Route right side cab wire harness (1)
through dash (2), passenger side cab wall
(7), and cab roof (8).
(4)

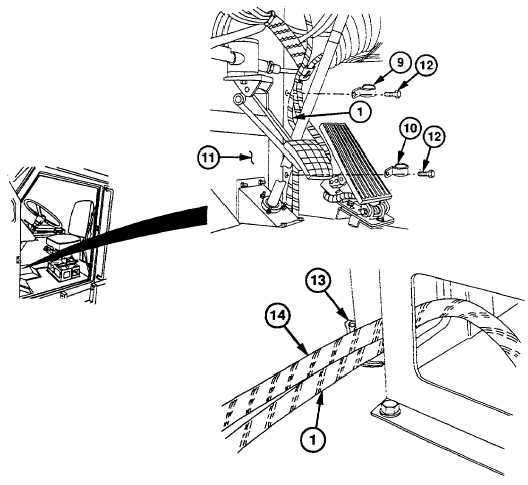

Install two cushion clips (9 and 10) on cab
wire harness (1).
(5)
Install two cushion clips (9 and 10) on cab
wall (11) with screws (12).
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(6)
Install plastic cable ties (13) on cab wire
harness (1) and CTI wire harness (14).
