TM 9-2320-360-34-1
6-7. REAR CAB WIRE HARNESS REPLACEMENT (CONT)
(41)

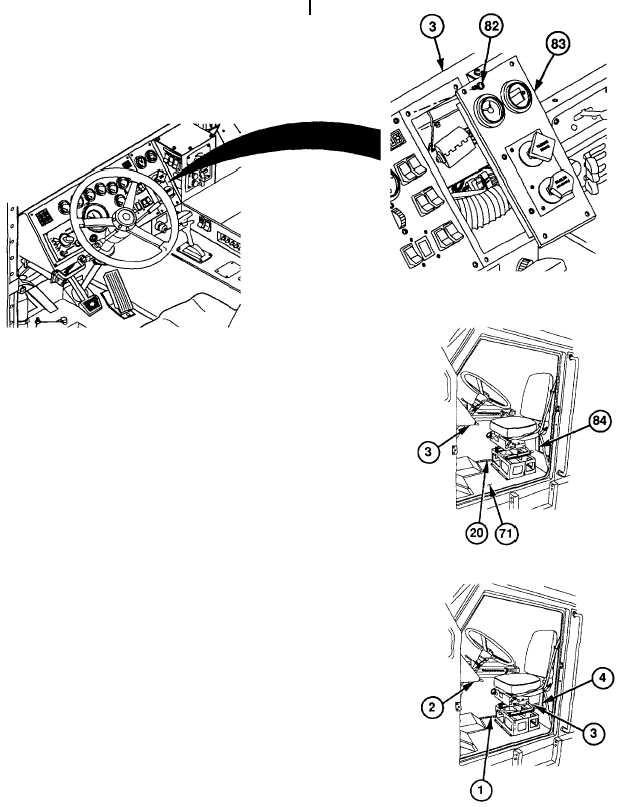

Remove four screws (82) and trailer brake
dash plate (83) from dash (3).
(42)
Remove left side of cab wire harness (20)
through backseat supports (84), cab floor
(71), and opening in dash (3).
b.
Installation
(1)
Route left side cab wire harness (1)
through dash (2), floor channel (3), and
back seat supports (4).
6-76
|
