TM 9-2320-360-34-1
(36)

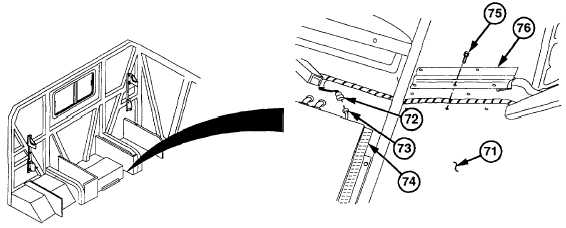

Remove electrical connector (72) from
electrical connector (73) on rear heater
(74).
(37)
Remove five screws (75) and cover plate
(76) from cab floor (71).
NOTE
Location of plastic cable ties should
be marked before removal.
(38)

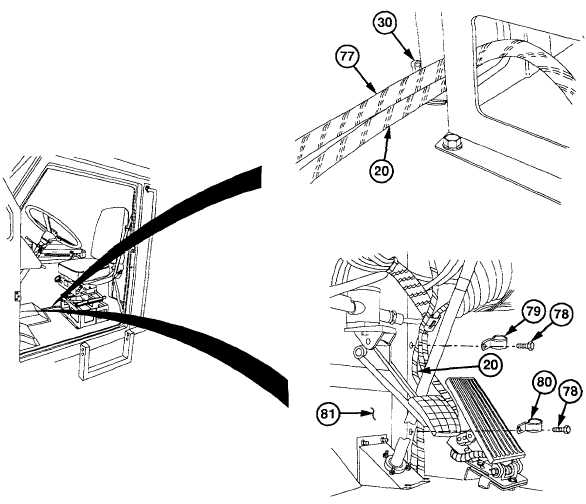

Remove plastic cable ties (30) from cab
wire harness (20) and CTI wire harness
(77).
(39)
Remove two screws (78) and two cushion
clips (79 and 80) from driver's side front
wall (81).
(40)
Remove two cushion clips (79 and 80)
from cab wire harness (20).
6-75
|
