TM 9-2320-360-34-1
6-7. REAR CAB WIRE HARNESS REPLACEMENT (CONT)
(30)

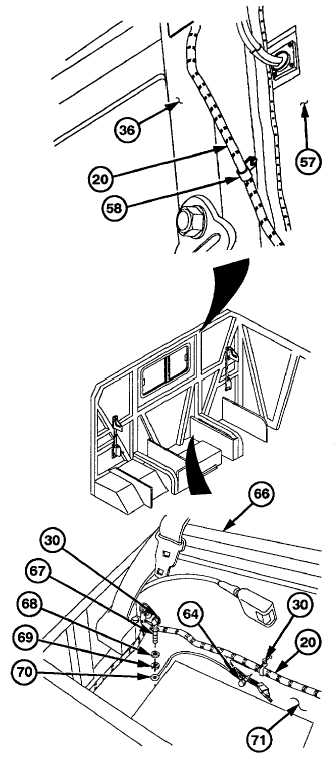

Pull rear insulation (57) back about 3 in.
(76.2 mm) from cab rear wall (36).
(31)
Cut and remove eight snap clips (58) from
wire harness (20) and cab rear wall (36).
Discard snap clips.
(32)
Deleted.
(33)
Deleted.
NOTE
Location of plastic cable ties should
be marked before removal.
(34)
Remove five screws (64) and plastic cable
ties (30) from cab wire harness (20) and
rear seat bracket (66).
(35)
Remove
screw
(67),
washer
(68),
lockwasher (69), and wire no. 1435 (70)
from cab floor (71). Discard lockwasher.
6-74 Change 1
|
