TM 9-2320-360-34-1
(24)

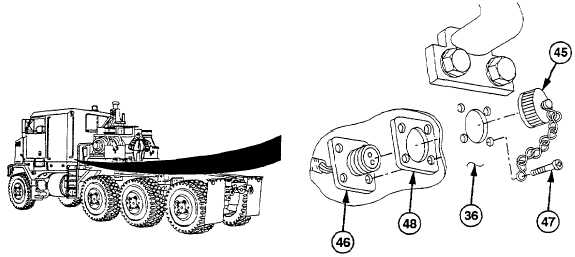

Remove cover (45) from driver's side
lower work light receptacle (46).
(25)
Remove four screws (47), receptacle (46),
and gasket (48) from cab rear wall (36).
Discard gasket.
(26)

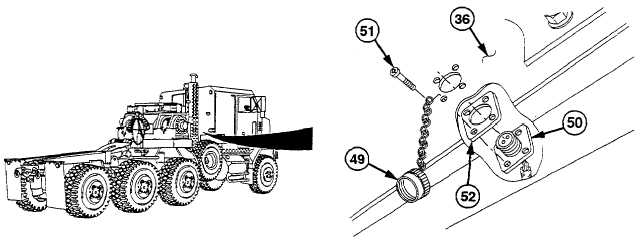

Remove cover (49) from passenger's side
lower work light receptacle (50).
(27)
Remove four screws (51), receptacle (50),
and gasket (52) from cab rear wall (36).
Discard gasket.
(28)

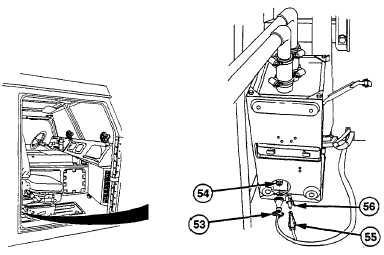

Remove electrical connector (53) from
GPFU
precleaner
electrical
connector
(54).
(29)
Remove electrical connector (55) from
GPFU
precleaner
electrical
connector
(56).
6-73
|
