TM 9-2320-360-34-1
6-7. REAR CAB WIRE HARNESS REPLACEMENT (CONT)
NOTE
Covers and electrical connectors are
removed
by
turning
collar
counterclockwise.
(18)

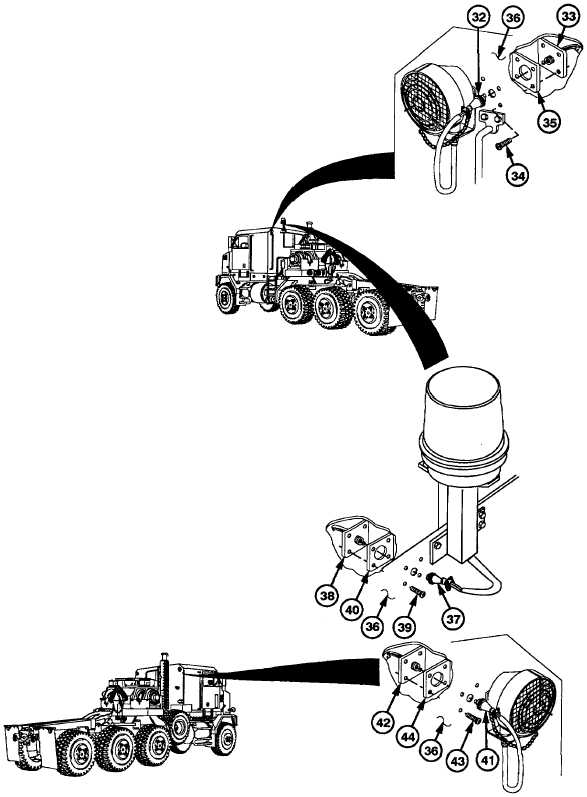

Remove driver's side work light electrical
connector (32) from receptacle (33).
(19)
Remove four screws (34), receptacle (33),
and gasket (35) from cab rear wall (36).
Discard gasket.
(20)
Remove beacon light electrical connector
(37) from receptacle (38).
(21)
Remove four screws (39), receptacle (38),
and gasket (40) from cab rear wall (36).
Discard gasket.
(22)
Remove passenger's side work light
electrical connector (41) from receptacle
(42).
(23)
Remove four screws (43), receptacle (42),
and gasket (44) from cab rear wall (36).
Discard gasket.
6-72 Change 1
|
