TM 9-2320-360-34-1
(11)

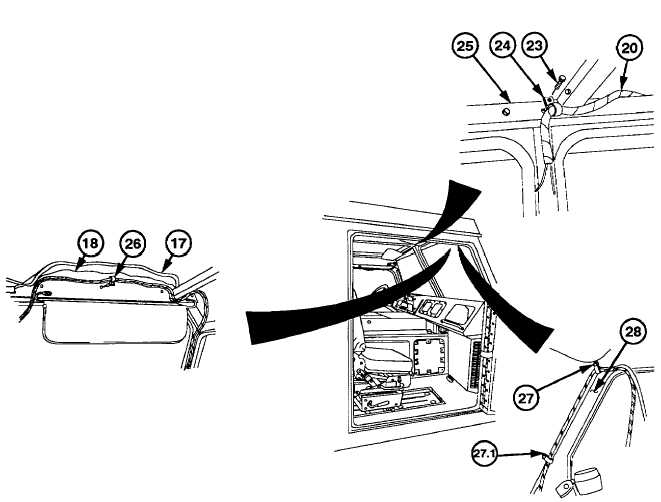

Remove screw (23) and cushion clip (24)
from cab wire harness (20) and cab front
brace (25).
(12)
Pull insulation (17) 3 in. (76.2 mm) from
cab roof (18).
(13)
Cut and remove four snap clips (26) from
cab roof (18). Discard snap clips.
(14)
Cut and remove snap clip (27) and snap
clip (27.1) from passenger side cab wall
(28). Discard snap clips.
(15)
Deleted.
NOTE
Location of plastic cable ties should
be marked before removal.
(16)

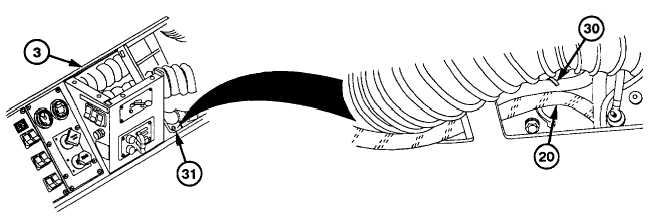

Remove plastic cable ties (30) from cab
wire harness (20).
(17)
Remove right half of cab wire harness (20)
through dash (3) and access hole (31).
Change 1 6-71
|
