TM 9-2320-360-34-1
6-7. REAR CAB WIRE HARNESS REPLACEMENT (CONT)
(5)

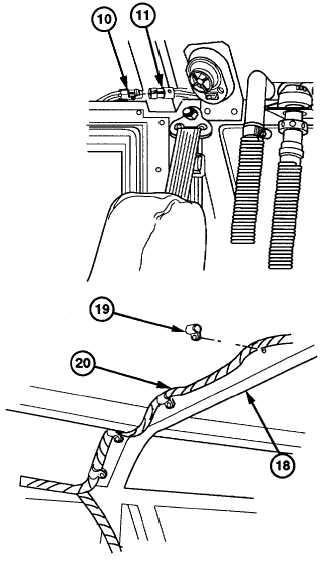

Remove electrical connector (10) from
right side map light electrical connector
(11).
(6)
Deleted.
(7)
Deleted.
(8)
Cut and remove four snap clips (19) from
cab roof (18).
(9)
Remove four snap clips (19) from cab wire
harness (20). Discard snap clips.
(10)

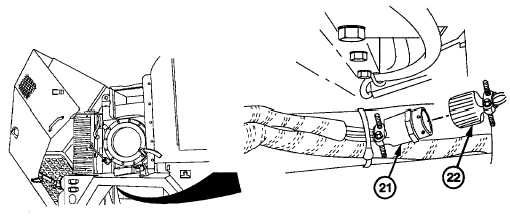

Remove electrical connector (21) from
chemical alarm electrical connector (22).
6-70 Change 1
|
