6-6. CAB WIRE HARNESS REPLACEMENT (CONT)
(64)

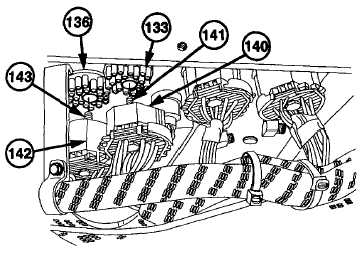

Install cab wire harness red connector
(140) on red cab connector (133) and
tighten screw (141).
(65)
Install cab wire harness yellow connector
(142) on yellow cab connector (136) and
tighten screw (143).
(66)

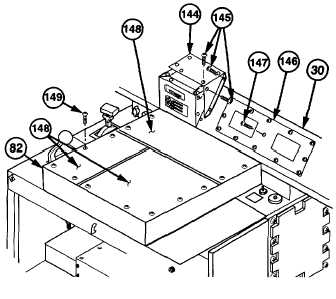

Install panel (144) on dash (30) with nine
screws (145).
(67)
Install panel (146) on dash (30) with 13
screws (147).
(68)
Install 3 panels (148) on console (82) with
19 screws (149).
c.
Follow-On Maintenance
(1)
Install engine switch (TM 9-2320-360-20).
(2)
Install
instrument
panel
(TM 9-2320-360-20).
(3)
Connect batteries (TM 9-2320-360-20).
(4)
Install shifter guard (TM 9-2320-360-20).
(5)
Install
top
doghouse
insulation
(TM 9-2320-360-20).
(6)
Install
lower
engine
access
panel
(TM 9-2320-360-20).
