TM 9-2320-360-34-1
(59)

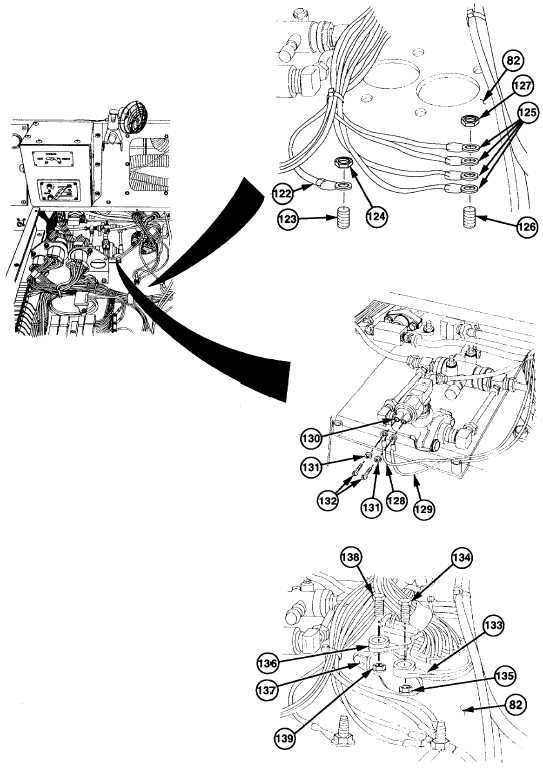

Install ground wire no. 1435 (122), screw
(123), and new locknut (124) on console
(82).
(60)
Install four ground wires no. 1435 (125),
screw (126) and new locknut (127) on
console (82).
(61)
Install wire no. 1092 (128) and ground
wire no. 1435 (129) on driveline lockup
switch (130) with two new lockwashers
(131) and screws (132).
(62)
Install red cab connector (133) on console
(82) with two screws (134) and new
locknuts (135).
(63)
Install yellow cab connector (136) and
standoff bracket(137) on console (82) with
two screws (138) and new locknuts (139).
Change 1 6-67
|
