TM 9-2320-360-34-1
6-6. CAB WIRE HARNESS REPLACEMENT (CONT)
(54)

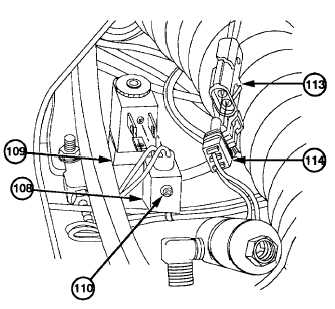

Install connector (108) on windshield
washer solenoid (109). Tighten screw
(110).
(55)
Deleted.
(56)
Install
electrical
connector
(113)
on
transmission
modulator
electrical
connector (114).
(57)

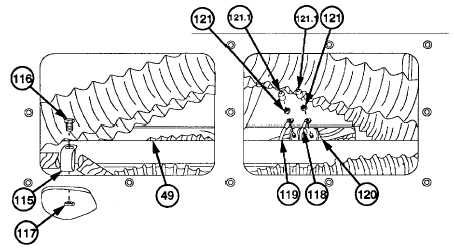

Install cushion clip (115) on harness (1)
and cab brace (49) with screw (116) and
new locknut (117).
(58)
Install wire no. 1005 (118) and wire no.
1009 (119) on trailer brake stoplight switch
(120) with two nuts (121).
(58.1)
Install two caps (121.1) on trailer brake
stoplight switch (120).
6-66 Change 1
|
