TM 9-2320-360-34-1
(47)

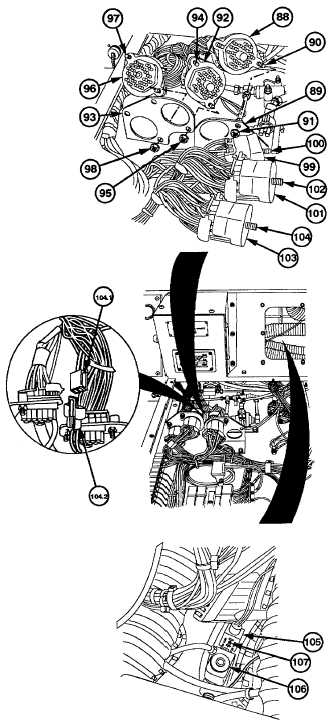

Install black cab wire harness connector
(88) on bracket (89) with two screws (90)
and new locknuts (91).
(48)
Install white cab wire harness connector
(92) on bracket (93) with two screws (94)
and new locknuts (95).
(49)
Install black cab wire harness connector
(96) on bracket (93) with two screws (97)
and new locknuts (98).
(50)
Install
electric
control
box/light
wire
harness
connector
(99)
on
black
connector (88) and tighten screw (100).
(51)
Install white electric control box wire
harness
connector
(101)
on
white
connector (92) and tighten screw (102).
(52)
Install black electric control box wire
harness
connector
(103)
on
black
connector (96) and tighten screw (104).
(52.1)
Install electrical connector (104.1) on ECB
wire harness (104.2).
(53)
Install connector (105) on horn solenoid
(106). Tighten screw (107).
Change 1 6-65
|
