6-6. CAB WIRE HARNESS REPLACEMENT (CONT)
(40)
Install
grommet
(79)
on
electrical
connector (80).
(41)

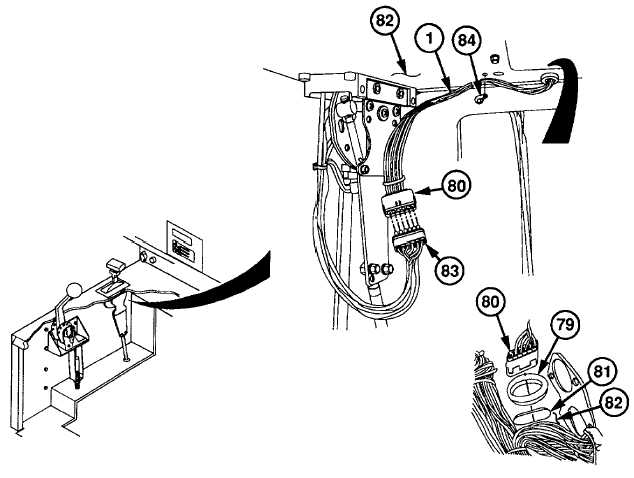

Route electrical connector (80) through
hole (81) in console (82).
(42)
Install grommet (79) in hole (81) in
console (82).
(43)
Install
electrical
connector
(80)
on
transmission
shift
control
assembly
electrical connector (83).
(44)
Install new clip (84) on harness (1) and
console (82).
(45)

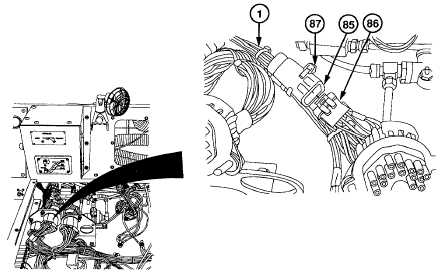

Install vernier control (85) on electrical
connector (86).
NOTE
Plastic
cable
ties
should
be
positioned
in
locations
marked
during removal.
(46)
Secure vernier control (85) to harness (1)
with plastic cable tie (87).
