TM 9-2320-360-34-1
6-6. CAB WIRE HARNESS REPLACEMENT (CONT)
NOTE
Allow enough wire to remain in cab
to splice in new harness.
(62)

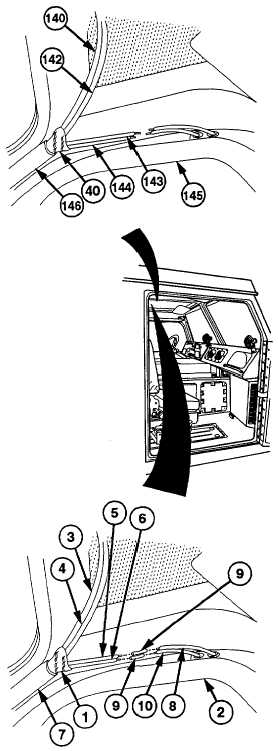

Cut wire no. 1680 (143) and wire no.
1012 (144) where they exit cab (145).
(63)
Pull ground wire no. 1435 (140), wire no.
1189 (142), wire no. 1680 (143), and wire
no. 1012 (144) down through tube (146).
(64)
Remove wire harness (40) from cab (145).
b.
Installation
NOTE
Evenly
distribute
any
slack
in
harness.
Do
not
make
any
connections.
(1)
Position wire harness (1) in cab (2).
(2)
Route ground wire no. 1435 (3), wire no.
1189 (4), wire no. 1680 (5), and wire no.
1012 (6) up through tube (7).
NOTE
Harness connection is made at upper
left corner of windshield.
(3)
Connect harness wire no. 1680 (5) to cab
wire no. 1680 (8) with connector (9).
(4)
Connect harness wire no. 1012 (6) to cab
wire no. 1012 (10) with connector (9).
6-58
|
