TM 9-2320-360-34-1
(55)

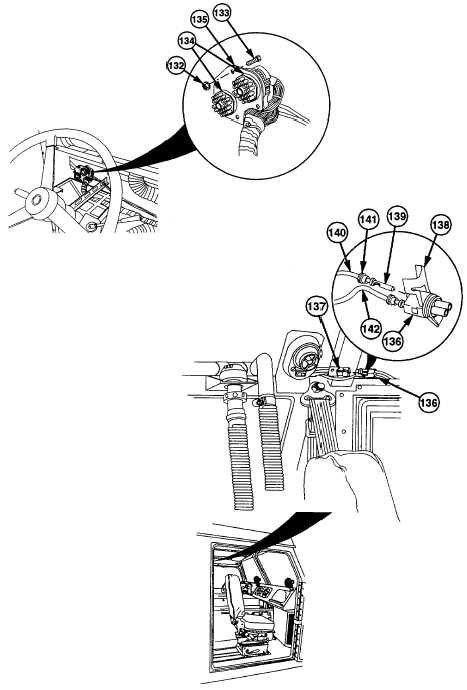

Remove four locknuts (132), screws (133),
and two cab wire harness connectors
(134)
from
bracket
(135).
Discard
locknuts
(56)
Remove electrical connector (136) from
left side map light electrical connector
(137).
(57)
Unlatch and open secondary lock (138) on
connector (136).
NOTE
Both wires in connector are removed
the same way.
(58)
Insert pin removal tool into cavity on
connector (136) until seated to release
lock tangs on terminal (139).
(59)
Pull ground wire no. 1435 (140) back,
turn connector (136), and remove tool.
(60)
Cut terminal (139) directly behind wire
seal (141). Discard terminals and seal.
(61)
Do steps (58) thru (60) for wire no. 1189
(142).
6-57
|
