6-6. CAB WIRE HARNESS REPLACEMENT (CONT)
NOTE
Tag and mark wires before removal.

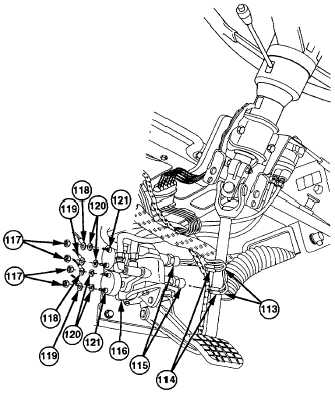

(49)
Remove one each wire no. 1120 (113)
and ground wire no. 1435 (114) from
each of two low air pressure switches
(115) on brake treadle valve (116).
(50)
Remove four nuts (117), two wires no.
1005 (118), two wires no. 1009 (119), and
lockwashers
(120)
from
two
stoplight
switches (121) on brake treadle valve
(116). Discard lockwashers.

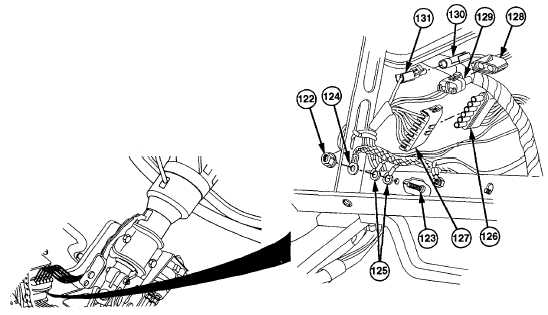

(51)
Remove
locknut
(122),
screw
(123),
ground strap (124), and two ground wires
no. 1435 (125) from dash (6). Discard
locknut.
(52)
Remove electrical connector (126) from
directional
lights
electrical
connector
(127).
(53)
Remove electrical connector (128) from
headlight high beam electrical connector
(129).
(54)
Remove electrical connector (130) from
city horn electrical connector (131).
