TM 9-2320-360-34-1
(45)

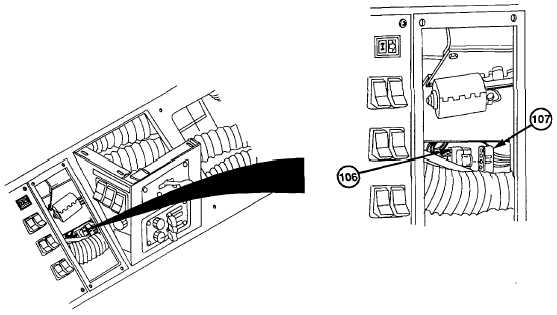

Remove electrical connector (106) from
wiper motor electrical connector (107).
(46)

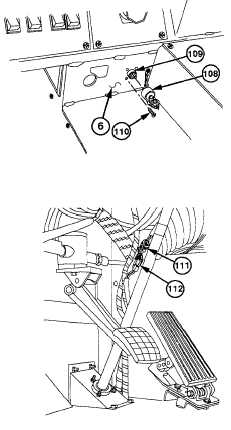

Remove cover (108) from work light
connector (109).
(47)
Remove four screws (110) and work light
connector (109) from dash (6).
(48)
Remove electrical connector (111) from
throttle sensor electrical connector (112).
6-55
|
