TM 9-2320-360-34-1
6-6. CAB WIRE HARNESS REPLACEMENT (CONT)
(39)

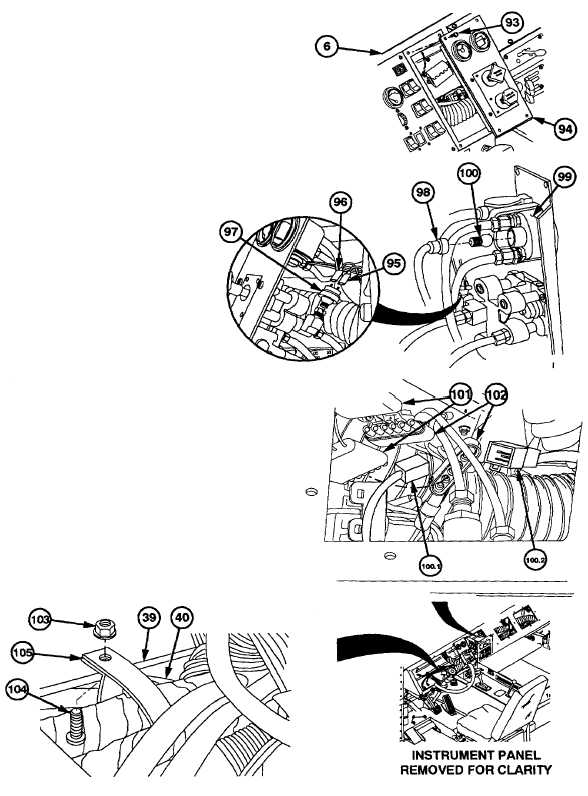

Remove four screws (93) and trailer brake
dash plate (94) from dash (6).
(40)
Remove wire no. 1719B (95) and wire no.
1719C (96) from PTO safety switch (97).
(41)
Remove connector (98) from air pressure
gage (99).
(42)
Remove light (100) from connector (98).
(42.1)
Remove electrical connector (100.1) from
cab rear wire harness connector (100.2).
(43)
Remove two electrical connectors (101)
from
two
cab
rear
wire
harness
connectors (102).
(44)
Remove locknut (103), screw (104), and
cushion clip (105) from cab brace (39) and
harness (40). Discard locknut.
6-54 Change 1
|
