TM 9-2320-360-34-1
(31)

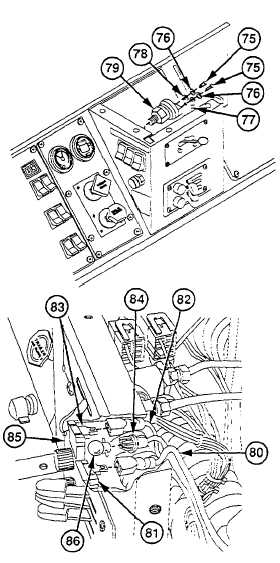

Remove two screws (75), washers (76),
wire no. 1487 (77), and wire no. 1036
(78) from ether start switch (79).
(32)
Remove wire no. 1340 (80) from rear
heater switch (81).
(33)
Remove wire no. 1082 (82) from front
heater switch (83).
(34)
Remove connector (84) from heater panel
(85).
(35)
Remove light (86) from connector (84).
(36)

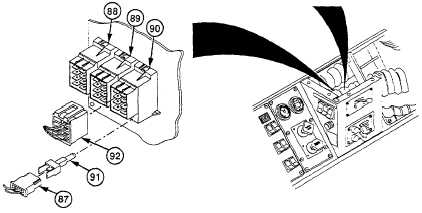

Remove three connectors (87) from PTO
switch (88), gas particulate filter switch
(89), and chemical alarm switch (90).
(37)
Remove three light assemblies (91) from
connectors (87).
(38)
Remove three electrical connectors (92)
from PTO switch (88), gas particulate filter
switch (89), and chemical alarm switch
(90).
6-53
|
