TM 9-2320-360-34-1
6-6. CAB WIRE HARNESS REPLACEMENT (CONT)
NOTE
Location of plastic cable ties should
be marked before removal.
(24)

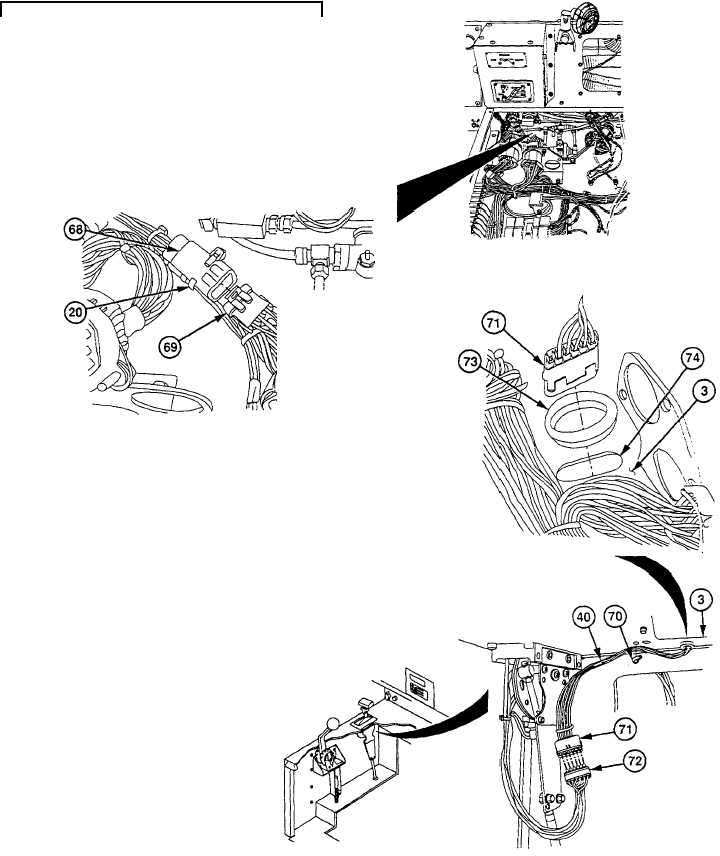

Remove plastic cable ties (20) from
vernier control (68).
(25)
Remove
vernier
control
(68)
from
electrical connector (69).
(26)
Cut and remove snap dip (70) from
console (3) and harness (40). Discard
snap dip.
(27)
Remove electrical connector (71) from
transmission
shift
control
assembly
electrical connector (72).
(28)
Remove grommet (73) from hole (74) in
console (3).
(29)
Route
electrical
connector
(71)
out
through hole (74) in console (3).
(30)
Remove grommet (73) from electrical
connector (71).
6-52
|
