TM 9-2320-360-34-1
(17)

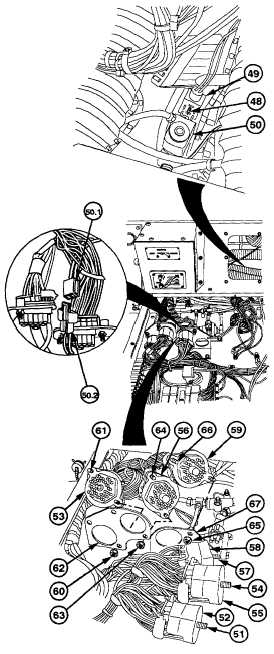

Loosen screw (48) and remove electrical
connector (49) from city horn solenoid
(50).
(17.1)
Remove electrical connector (50.1) from
ECB wire harness connector (50.2).
(18)
Loosen screw (51) and remove black
electric
control
box
wire
harness
connector (52) from black cab wire
harness connector (53).
(19)
Loosen screw (54) and remove white
electric
control
box
wire
harness
connector (55) from white cab wire
harness connector (56).
(20)
Loosen screw (57) and remove black
electric control box/light wire harness
connector (58) from black cab wire
harness connector (59).
(21)
Remove two locknuts (60), screws (61),
and black connector (53) from bracket
(62). Discard locknuts.
(22)
Remove two locknuts (63), screws (64),
and white connector (56) from bracket
(62). Discard locknuts.
(23)
Remove two locknuts (65), screws (66),
and black connector (59) from bracket
(67). Discard locknuts.
Change 1 6-51
|
