TM 9-2320-360-34-1
6-6. CAB WIRE HARNESS REPLACEMENT (CONT)

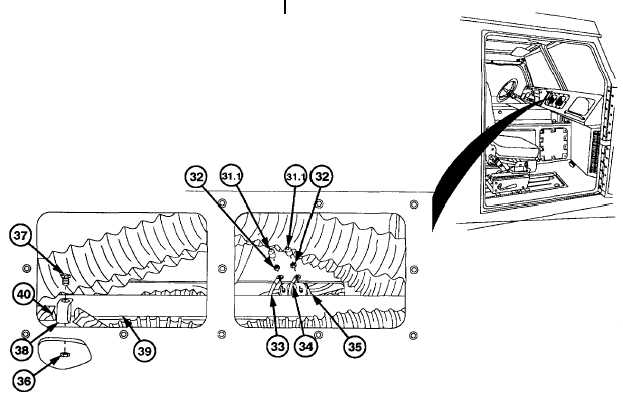

(12)
Remove two caps (31.1), nuts (32), wire
no. 1005 (33), and wire no. 1009 (34)
from trailer brake stoplight switch (35).
(13)
Remove locknut (36), screw (37), and
cushion clip (38) from cab brace (39) and
harness (40). Discard locknut.
NOTE
Tag and mark electrical connectors
before removal.
(14)
Remove electrical connector (41) from
transmission
modulator
electrical
connector (42).
(15)
Deleted.
(16)
Loosen screw (45) and remove electrical
connector (46) from windshield washer
solenoid (47).
6-50 Change 1
|
