TM 9-2320-360-34-1
NOTE
Location of plastic cable ties should
be marked before removal.
(8)

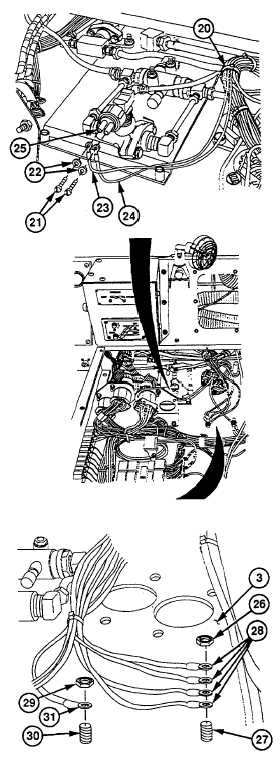

Remove plastic cable ties (20) from wires
as required.
NOTE
Tag and mark wires before removing.
(9)
Remove two screws (21), lockwashers
(22), wire no. 1092 (23), and ground wire
no. 1435 (24) from driveline lockup switch
(25). Discard lockwashers.
(10)
Remove locknut (26), screw (27), and four
ground wires no. 1435 (28) from console
(3). Discard locknut.
(11)
Remove locknut (29), screw (30), and
ground wire no. 1435 (31) from console
(3). Discard locknut.
6-49
|
