6-6. CAB WIRE HARNESS REPLACEMENT (CONT)
NOTE
Mark locations of cab connectors
before removing from console.
(4)

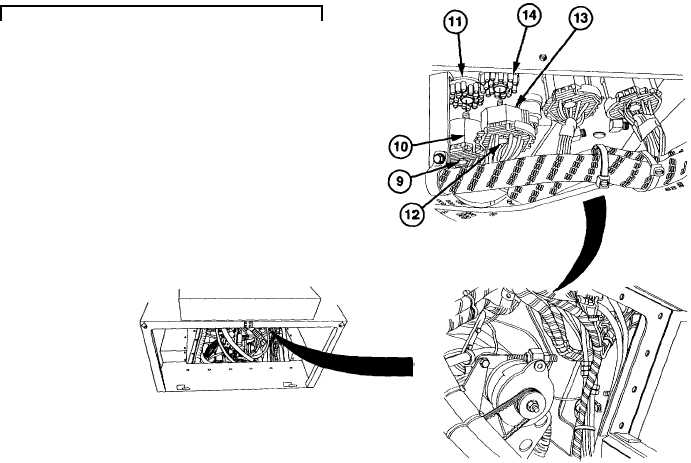

Loosen screw (9) and remove yellow
harness connector (10) from yellow cab
connector (11).
(5)
Loosen screw (12) and remove red
harness connector (13) from red cab
connector (14).
(6)

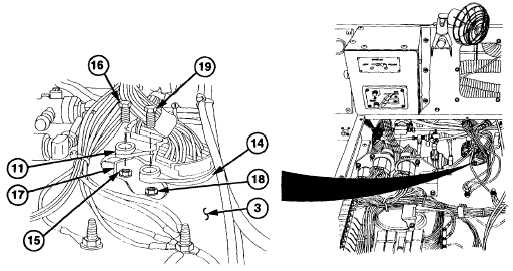

Remove two locknuts (15), screws (16),
standoff bracket (17), and yellow cab
connector (11) from console (3). Discard
locknuts.
(7)
Remove two locknuts (18), screws (19),
and red cab connector (14) from console
(3). Discard locknuts.
