6-6. CAB WIRE HARNESS REPLACEMENT
This task covers
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Conditions
Materials/Parts
Batteries disconnected (TM 9-2320-360-20).
Connectors, Butt (2) (Item 29, Appendix B)
Top doghouse insulation removed
Tags, Identification (Item 56, Appendix B)
(TM 9-2320-360-20).
Ties, Cable, Plastic (Item 60, Appendix B)
Lower engine access panel removed
Locknuts (19) (Item 96, Appendix F)
(TM 9-2320-360-20).
Lockwashers (4) (Item 115, Appendix F)
Shifter guard removed (TM 9-2320-360-20).
Lockwashers (2) (Item 117, Appendix F)
Instrument panel removed
Snap Clip (Item 323, Appendix F)
(TM 9-2320-360-20).
Terminal (Item 329, Appendix F)
Engine switch removed (TM 9-2320-360-20).
Terminal (Item 330, Appendix F)
Wire Seal (Item 345, Appendix F)
Tools and Special Tools
Wire Seal (Item 346, Appendix F)
Tool Kit, Electrical Repair (Item 201,
Appendix E)
Tool Kit, Genl Mech (Item 202, Appendix E)
a.
Removal
(1)

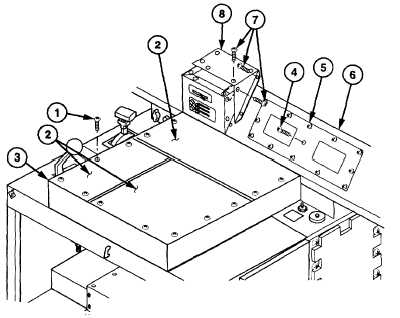

Remove 19 screws (1) and 3 panels (2)
from console (3).
(2)
Remove 13 screws (4) and panel (5) from
dash (6).
(3)
Remove nine screws (7) and panel (8)
from dash (6).
