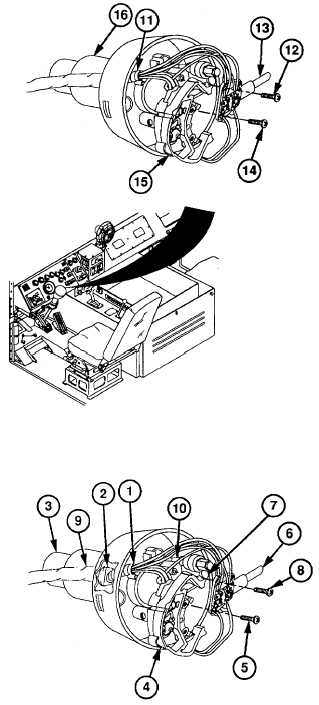

6-5. STEERING COLUMN HARNESS/SWITCH REPLACEMENT (CONT)
(9)
Remove two screws (12) from hazard
switch (13).
(10)
Remove two screws (14) from turn signal
switch (15).
(11)
Remove turn signal switch (15), hazard
switch (13), and wire harness (11) from
steering column (16) as one unit.
b.
Installation
(1)
Route wire harness (1) through hole (2) in
steering column (3).
(2)
Install turn signal switch (4) on steering
column (3) with two screws (5).
(3)
Position hazard switch (6) through hole (7)
on right side of steering column (3).
(4)
Install hazard switch (6) on steering
column (3) with two screws (8).
(5)
Install wire casing (9) on wire harness (1)
and yellow horn button wire (10).
