TM 9-2320-360-34-1
6-4. STARTER REPAIR (CONT)
NOTE
· Solenoid link spool must engage
into shift lever.
· To aid in solenoid installation,
starter drive should be positioned
all
the
way
out
of
armature.
Solenoid should be installed with
mounting legs facing away from
field
ring,
then
rotated
into
mounting position.
(45)

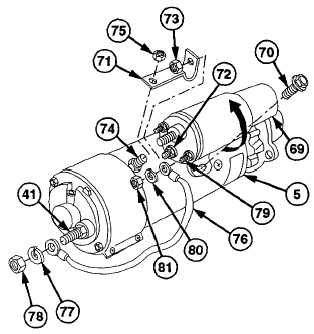

Install solenoid (69) on field ring (5) with
two screws (70).
(46)
Install jumper strap (71) on terminal no. 3
(72) with nut (73).
CAUTION
Use an open-end wrench to hold
bottom nut while installing top nut.
Failure to comply may damage field
coil.
(47)
Install jumper strap (71) on field coil stud
(74) with nut (75).
(48)
Install ground lead (76) on ground stud
(41) with new lockwasher (77) and nut
(78).
(49)
Install ground lead (76) on terminal no. 4
(79) with new lockwasher (80) and nut
(81).
e.
Follow-On Maintenance
Install starter (TM 9-2320-360-20).
6-42
|
