TM 9-2320-360-34-1
NOTE
Brush mounting screw is temporarily
installed to hold ground jumper in
place during assembly.
(37)

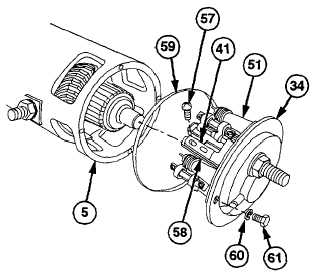

Install brush mounting screw (57) through
ground stud tab (41), ground jumper tab
(51), and brush holder contact plate (58).
WARNING
Adhesive-sealant can bum easily, can
give off harmful vapors, and is
harmful to skin and clothing. To
avoid Injury or death, keep away from
open fire and use in well ventilated
area. If adhesive sealant gets on skin
or clothing, wash immediately with
soap and water.
(38)
Install new preformed packing (59) on
commutator end housing (34).
(39)
Install commutator end housing (34) on
field ring (5) with four new lockwashers
(60) and screws (61). Torque to 62-66 lb-
in. (7-7.5 Nm).
(40)
Remove brush mounting screw (57).
(41)
Coat threads of eight screws (57) with
adhesive-sealant (Item 6, Appendix B).
(42)

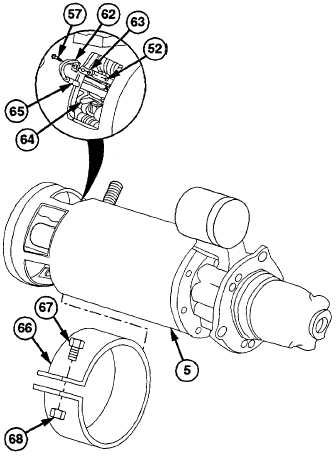

Install eight brush leads (62) on four brush
holders (52) with four lockplates (63) and
eight screws (57).
NOTE
Refer to appendix C for fabrication of
wire hook.
(43)
Pull eight springs (64) upward and install
eight brushes (65) on four brush holders
(52) using wire hook.
(44)
Install brush opening band (66) on field
ring (5) with two screws (67) and nuts
(68).
6-41
|
